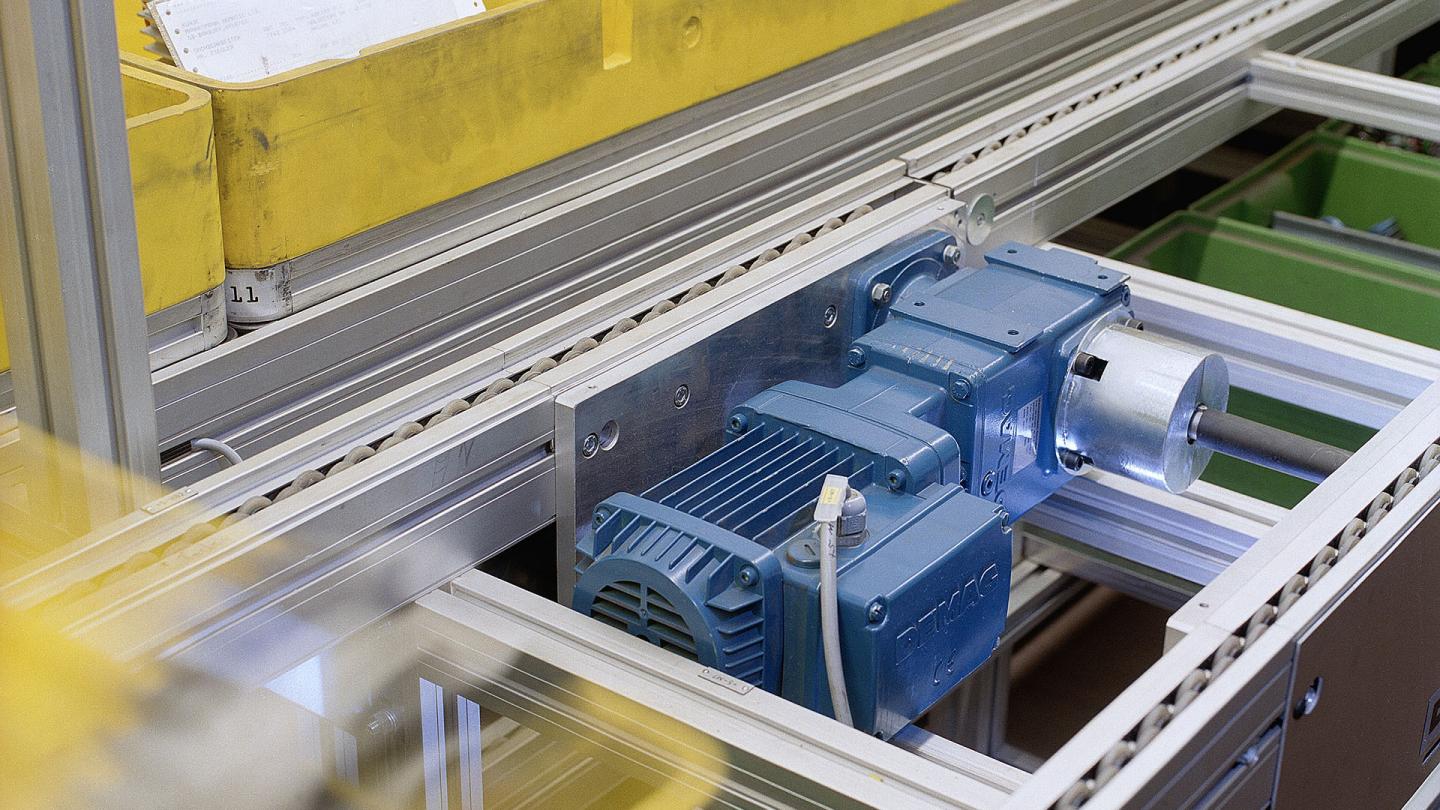

A compact solution tailored to meet your needs for every drive application

Our angular geared motors feature an extremely compact design – which makes them suitable for a wide variety of applications. They enable efficient travel drive solutions to be implemented with ease, even with narrow track gauge dimensions. The basis is provided by outstanding parameters:

  • large torque range from 120 to 12,000 Nm
  • wide range of transmission ratios
  • particularly smooth operation
  • bevel-wheel gearbox with high efficiency
  • 10 gearbox sizes

Product information

The benefits at a glance

Maximum flexibility
  • 10 gearbox sizes with torques from 120 to 12,000 Nm
  • Hypoid or bevel-wheel gearbox
  • Direct input or coupling connection
  • Drive shafts in 5 variants
  • 4 housing designs

Universal type WU / Flange-mounted type WF

Foot-mounted type 1 WG – bottom connection / Foot-mounted type 2 WG – end connection

W10 to W50 hypoid gearboxes for particularly smooth operation
  • High transmission ratio in the hypoid stage
W60 to W100 bevel-wheel gearboxes with high efficiency
  • High transmission ratio thanks to three stages already in the basic design
Convenient online configuration with Demag Drive Designer
  • View technical data
  • Design support by means of 2D and 3D geometries in all standard file formats
  • Provision of electrical circuit diagrams
  • Delivery time indicator
  • Transfer selected configuration to Demag Shop

Technical data

Type W angular geared motors

Transmission ratio (i)
Gearbox size Output torque [Nm] 2-stage 3-stage 4-stage
W10 120 5.34 – 100 –  –
W20 200 5.45 – 90.1 97.1 – 369 –
W30 330 3.73 – 90.1 107 – 369 –
W40 500 3.87 – 90.8 99.6 – 371 –
W50 800  4.94 – 94.3 99.9 – 386 –
W60 1,350 – 12.6 – 95.1 113 – 388
W70 2,500  – 13.7 – 102  113 – 399
W80 4,000 – 15.3 – 113 126 – 441
W90 7,000 – 15.9 – 111  126 – 434
W100 12,000 – 16.5 – 113 121 – 485

W10 – W40: aluminium housing
W50 – W100: grey cast iron housing

Features and accessories

Geared motors

Options A offset gearboxes W angular gearboxes D helical gearboxes
Torque brackets ■ ■
Foot rails/plates ■ ■
Mounting flange ■ ■ ■ 1)
Extended temperature range ■ ■ ■
Special paint finish ■ ■ ■
Special lubricants ■ ■ ■
Gearbox venting 2) ■ ■ ■
Double gearboxes 3) ■ ■ ■

1)  For sizes D11 – D41

2)  Standard for size 50

3)  For particularly low speeds
