Mobile workplace units – load-bearing flexibility

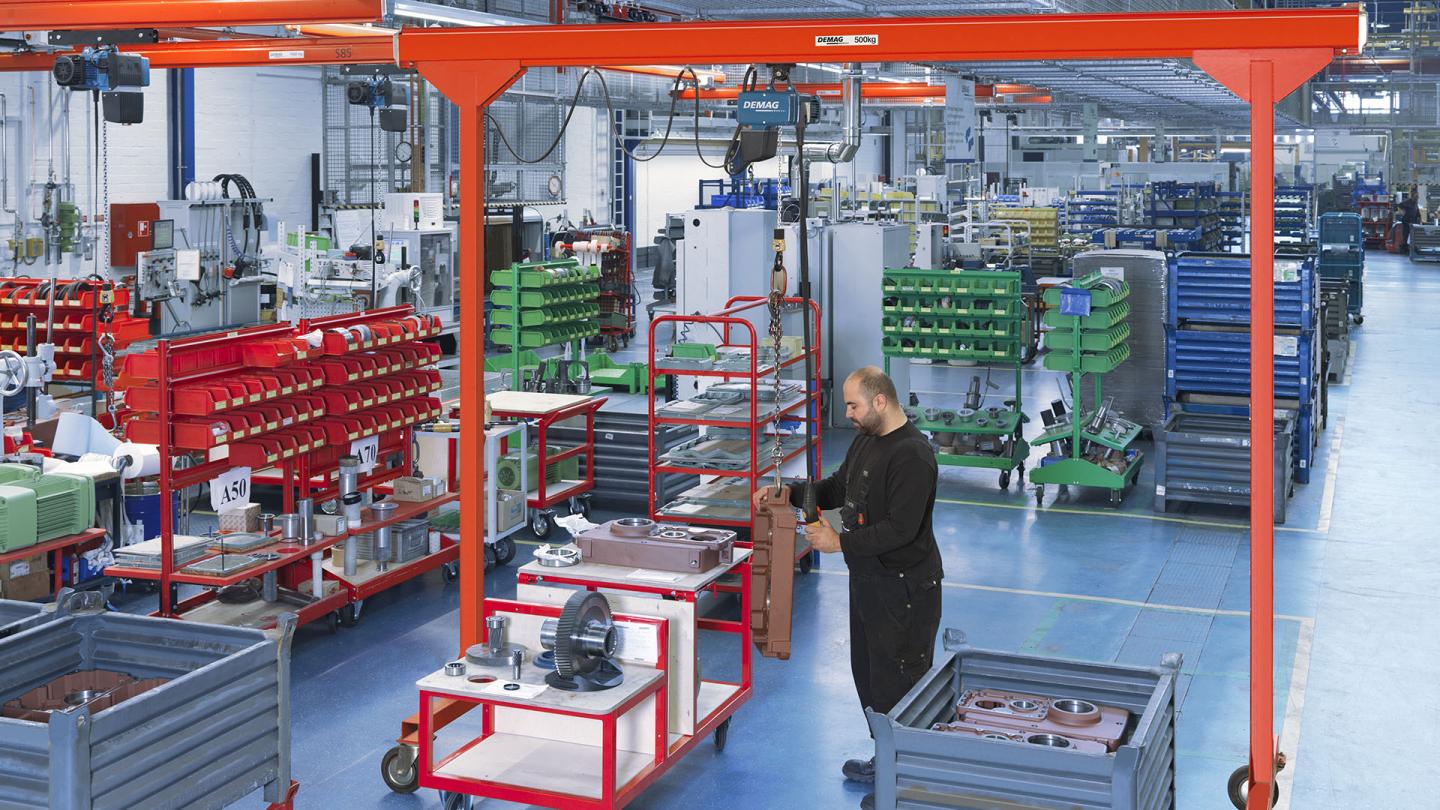

Our KBK portal cranes are the ideal solution wherever a permanent crane would be too complicated or cannot be installed. They run on solid, even floors and can be easily manoeuvred in any direction. This makes them ideal for a wide variety of loading and unloading operations in your factory as well as for maintenance and repair work. What other benefits do they offer?

  • Load capacity up to 3,200 kg
  • Crane girder span can be adjusted over a wide range
  • Optimally suited for repair and assembly work
  • Ideal for help in loading and unloading operations

Product information

The benefits at a glance

Three variants
  • EVP-KBK single-girder full-portal crane – KBK II or KBK II-H crane girder
  • ZVP-KBK double-girder full-portal crane – KBK II or KBK II-H crane girders
  • D-IVP single-girder full-portal crane – I-beam section crane girder (with optional telescopic height adjustment)
Practical applications
  • Easy to manoeuvre
  • Can be simply dismantled for transport
  • Quickly re-erected at a new operating site

Technical data

EVP-KBK single-girder full-portal crane

Load capacity Track gauge Girder length Max. lifting height
 [kg] lKr [mm]  lHT [mm]  H [mm]
250 2,300 – 5,300 3,000 – 6,000 2,671
315 2,300 – 5,300 3,000 – 6,000 2,619
400 2,300 – 5,300 3,000 – 6,000 2,619
500 2,300 – 4,300 3,000 – 5,000 2,619

ZVP-KBK double-girder full-portal crane

Load capacity Track gauge Girder length Max. lifting height
 [kg] lKr [mm]  lHT [mm]  H [mm]
400 2,300 – 5,300 3,000 – 6,000 2,844
500 2,300 – 5,300 3,000 – 6,000 2,844
630 2,300 – 5,300 3,000 – 6,000 2,755
800 2,300 – 4,300 3,000 – 5,000 2,755
1,000 2,300 – 4,300 3,000 – 5,000 2,755

Single-girder full-portal crane with I-beam girder

D-IVP single-girder full-portal crane with I-beam girder
Load capacity Track gauge Girder length Max. lifting height
 [kg] lKr [mm]  lHT [mm]  H [mm]
250 3,105 – 6,105 3,445 – 6,445 2,584
500 3,105 – 6,105 3,445 – 6,445 2,532
1,000 3,140 – 6,140 3,510 – 6,510 2,443
1,600 3,160 – 6,160 3,690 – 6,690 2,339
2,000 3,160 – 6,160 3,690 – 6,690 2,339
2,500 3,200 – 6,200 3,770 – 6,770 2,339
3,200 3,200 – 6,200 3,770 – 6,770  2,248
